TheMercenary 11-21-2011 02:26 PM

What are you going to seal it with? I found Behr brand worked the best, I think it is from Lowes.

glatt 11-21-2011 02:33 PM

Those are really tight and uniform joints at the flashing. Good work.

jimhelm 11-21-2011 02:46 PM

Quote:

Originally Posted by infinite monkey (Post 774555)
It's gorgeous! And great kids!

You know, my favorite part of my whole day yesterday was overhearing Spencer teaching Ripley how to make the line with the template. It made me smile ear to ear.

infinite monkey 11-21-2011 02:48 PM

Which one is older?

I know firsthand how great having a brother is, even in adulthood. :)

Very good day for you.

jimhelm 11-21-2011 02:48 PM

Quote:

Originally Posted by TheMercenary (Post 774557)
What are you going to seal it with? I found Behr brand worked the best, I think it is from Lowes.

I'm gonna let it sit this winter, and then in the Spring, I'll power wash it, sand it and then seal it. I'll look into what kind is best.... It looks so nice after it rains.
Quote:

Originally Posted by glatt (Post 774559)
Those are really tight and uniform joints at the flashing. Good work.

Thanks! That's going to be visible, so it had to be just right.

jimhelm 11-21-2011 02:49 PM

Quote:

Originally Posted by infinite monkey (Post 774569)
Which one is older?

I know firsthand how great having a brother is, even in adulthood. :)

Very good day for you.

Spence is 13, Ippy is 11.

They're pretty tight. I hope that relationship lasts their lifetimes.

infinite monkey 11-21-2011 02:51 PM

I bet it will. My brother is two years older than I am, too (really a year and a half as the crow flies.) He's my rock.

jimhelm 11-21-2011 05:40 PM

1 Attachment(s)

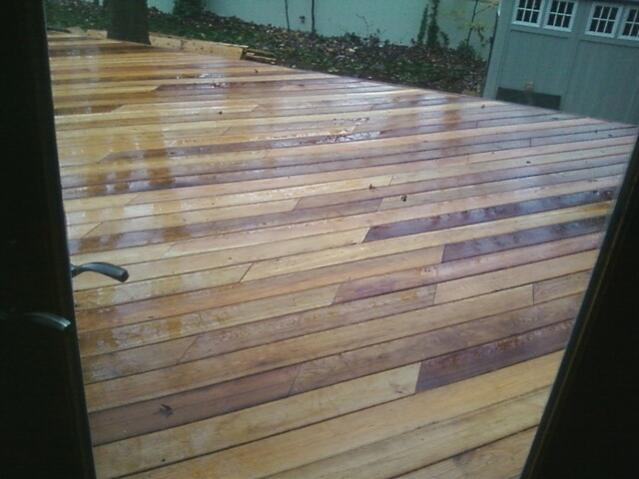

here it is wet:

Attachment 35459

I hope it comes up this bright with the sealant. Mine was 4 years old before I finally got around to doing it,...but I THINK is looked this good...

monster 11-21-2011 05:49 PM

Lovely. Is the "floor" finished now then? Just the railings to go?

jimhelm 11-21-2011 05:53 PM

right!

and a few odds and ends.. I'm gonna make a 'sill' for the door out of a 2x12, and perhaps a piece of 'molding' along the house side so that copper is covered. maybe.

zippyt 11-21-2011 06:18 PM

Put them youngens to work !!!
Make them EARN their keep !!!

Decks Looken great !!!

classicman 11-21-2011 07:38 PM

Very well done, Jim.

jimhelm 11-28-2011 07:42 PM

4 Attachment(s)
ok! Railings!

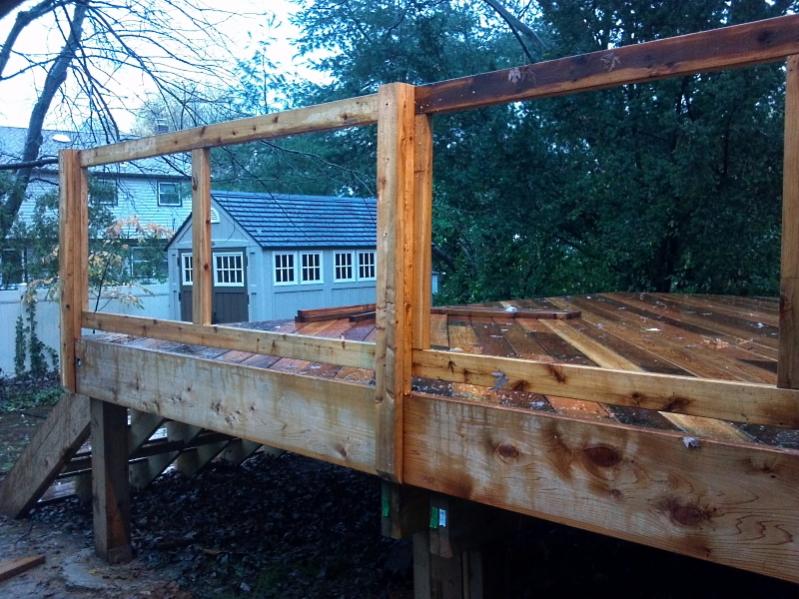

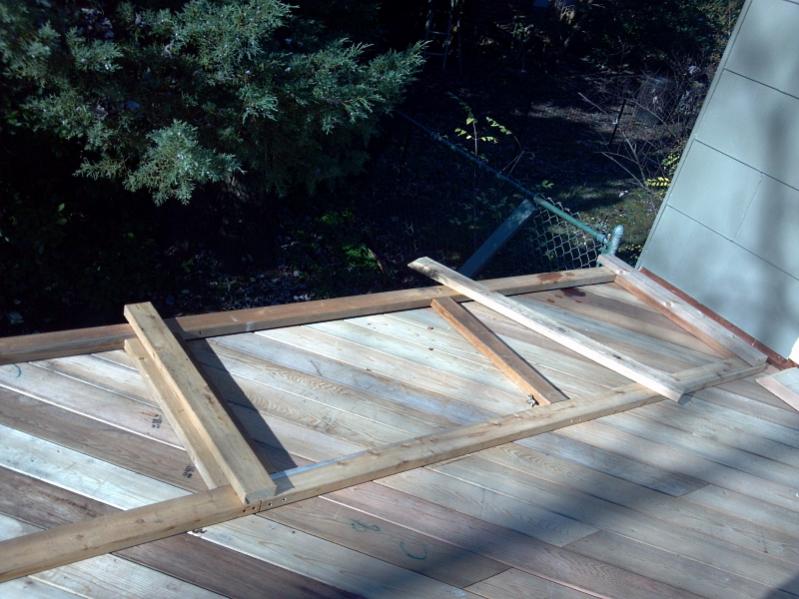

I lay out the frame for the box that goes on the inside of the railing. 8' 2x4 cedar boards at top and bottom, 29" pieces at each end and in the center.

Attachment 35540

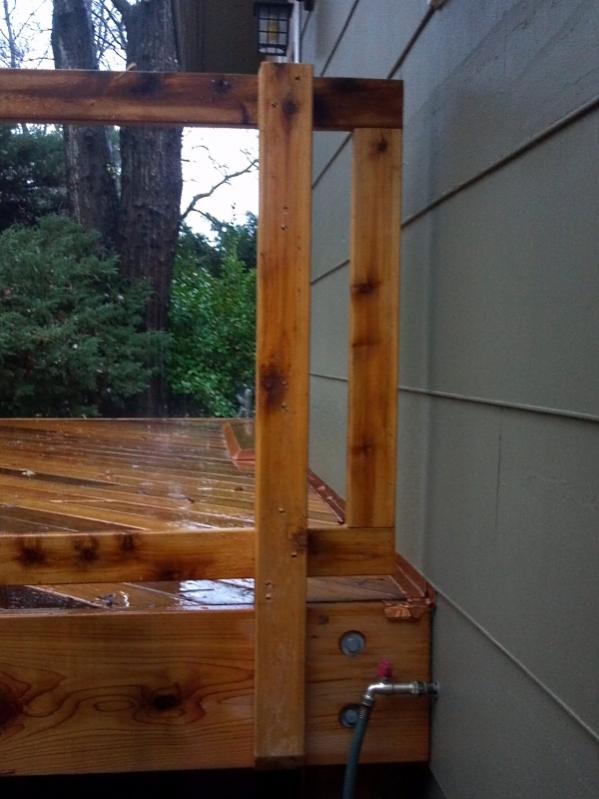

then, on the outside they get a 38" piece that will sit flush on top of the outer frame. and a 49.5" that goes down the side and bolts on. I beveled the edges of those 1 1/2" from the end on a 45 deg angle.

Attachment 35541

Attachment 35542

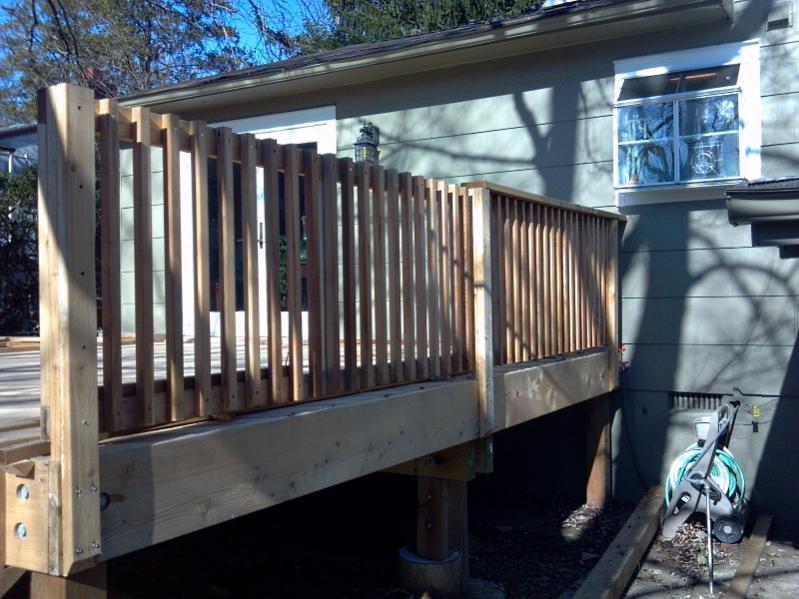

Then I attach the balusters. I cut 2 triangular pieces of scrap wood at 3" width, and centered them on a baluster and screwed them in. I use that to space my balusters. i flip it over for each new baluster because there is a slight difference in the width of the two spacer pieces... this keeps that slight diff from growing into a noticeable one. I also check for plumb with my level after 8 or 10 just to keep on track.

Attachment 35543

jimhelm 11-28-2011 07:48 PM

4 Attachment(s)
then I top the railing with 2x6 clear cedar. I drill up through the 2x4x8 that was the inside of the box i mentioned in the previous post. I go up about 2 inches into it with a large bit that the head of the screw will fit into. then i tap it the rest of the way, and put a 3" screw into the railing from underneath.

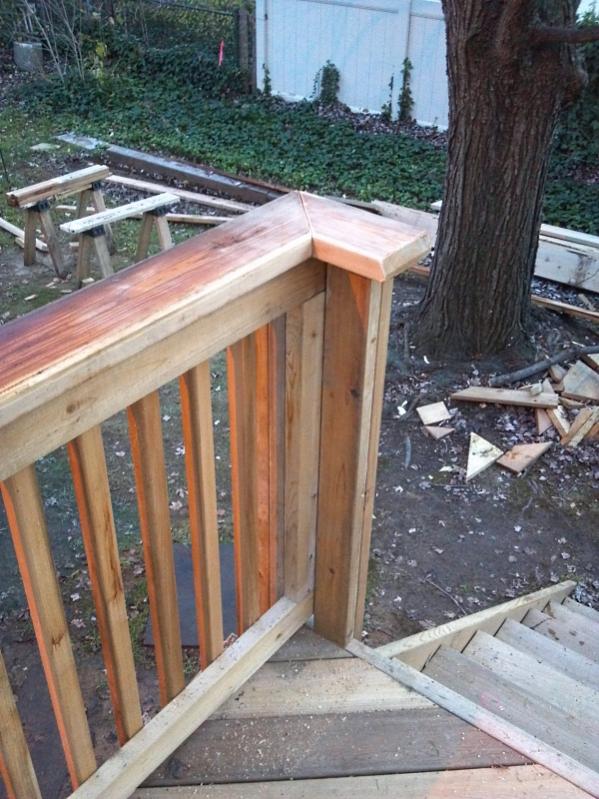

the corner is a simple 45 degree angle, making sure to use the same piece of wood, and matching the grain up around the corner.

Attachment 35544

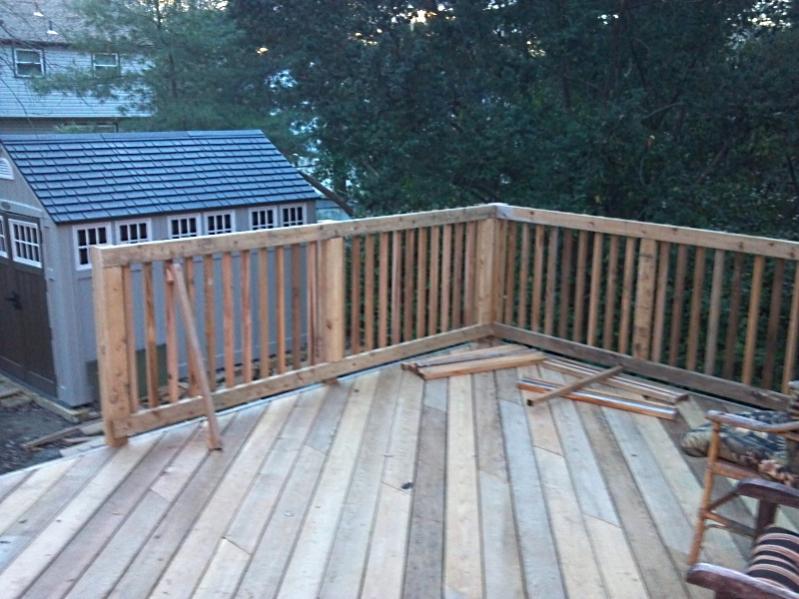

we finished the railing part on Sunday. That's the baluster i used to space the others leaning up there. you can see one of the triangular pieces.

Attachment 35545

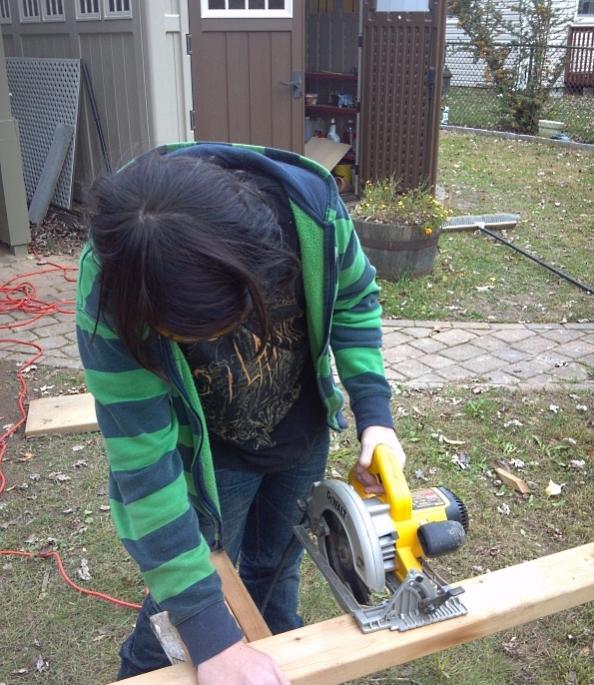

Spencer got to use the circular saw for the first time

Attachment 35549

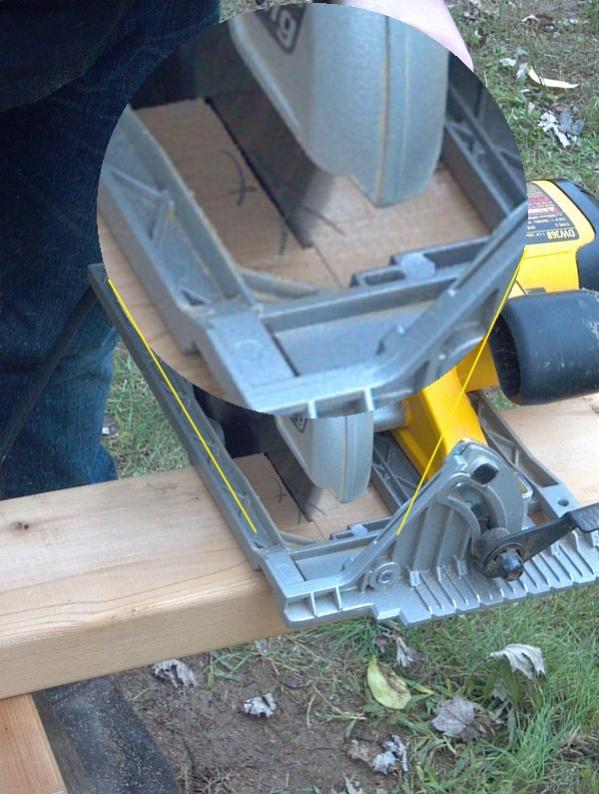

He did an excellent job. look how tight to the line he is here:

Attachment 35547

jimhelm 11-28-2011 07:52 PM

1 Attachment(s)

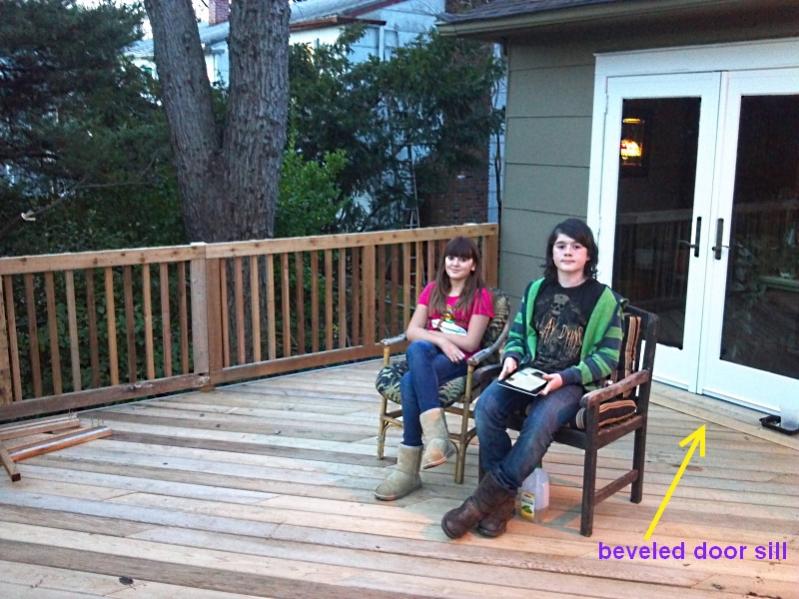

kids chilling after a day's work and some Chinese food. Attachment 35548
You can see the door sill i did in the back there. I used a 2x12 that we had left over, and beveled it on a 45 around 3 edges. I screwed up from underneath to secure it there. Fits perfectly under the door sill. I love it when a plan comes together.
